Barrel vaults are designed for installation on an existing curb on a flat roof. The unit consists of a welded aluminum sash with arched mullions, acrylic or polycarbonate glazing, and bar caps over the mullions.

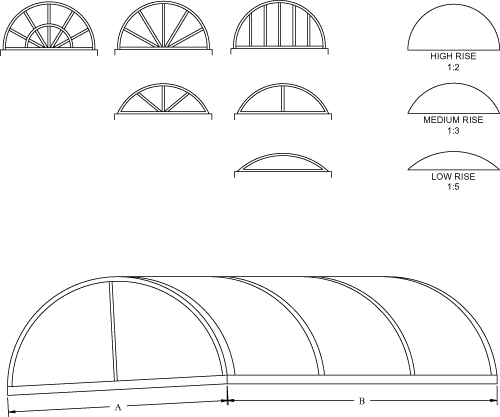

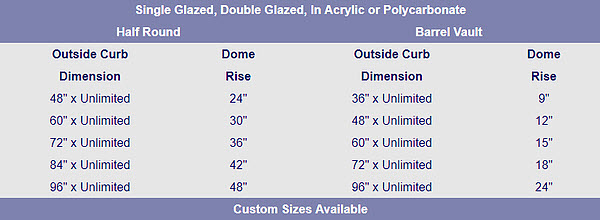

Standard Profiles
Ordering Info

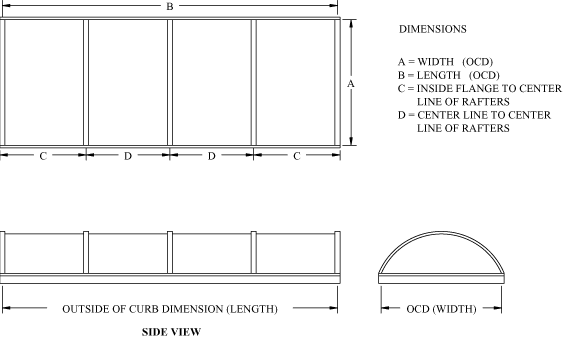

Specify the outside dimension of curb, the rise, the preferred glazing material and configuration, and finish.
Note: The flange-to-flange dimension of the curb mount will be 1/2" larger than the outside dimension of the curb unless specified otherwise.
You may also request the number of bays. Some limitations do apply. Call for details.
The standard finish is mill. Custom paint may be specified.
Models
- BVBarrel Vault – Medium Rise (standard)
- BV-HRBarrel Vault – Half Round (High Rise)
- BV-LRBarrel Vault – Low Rise
